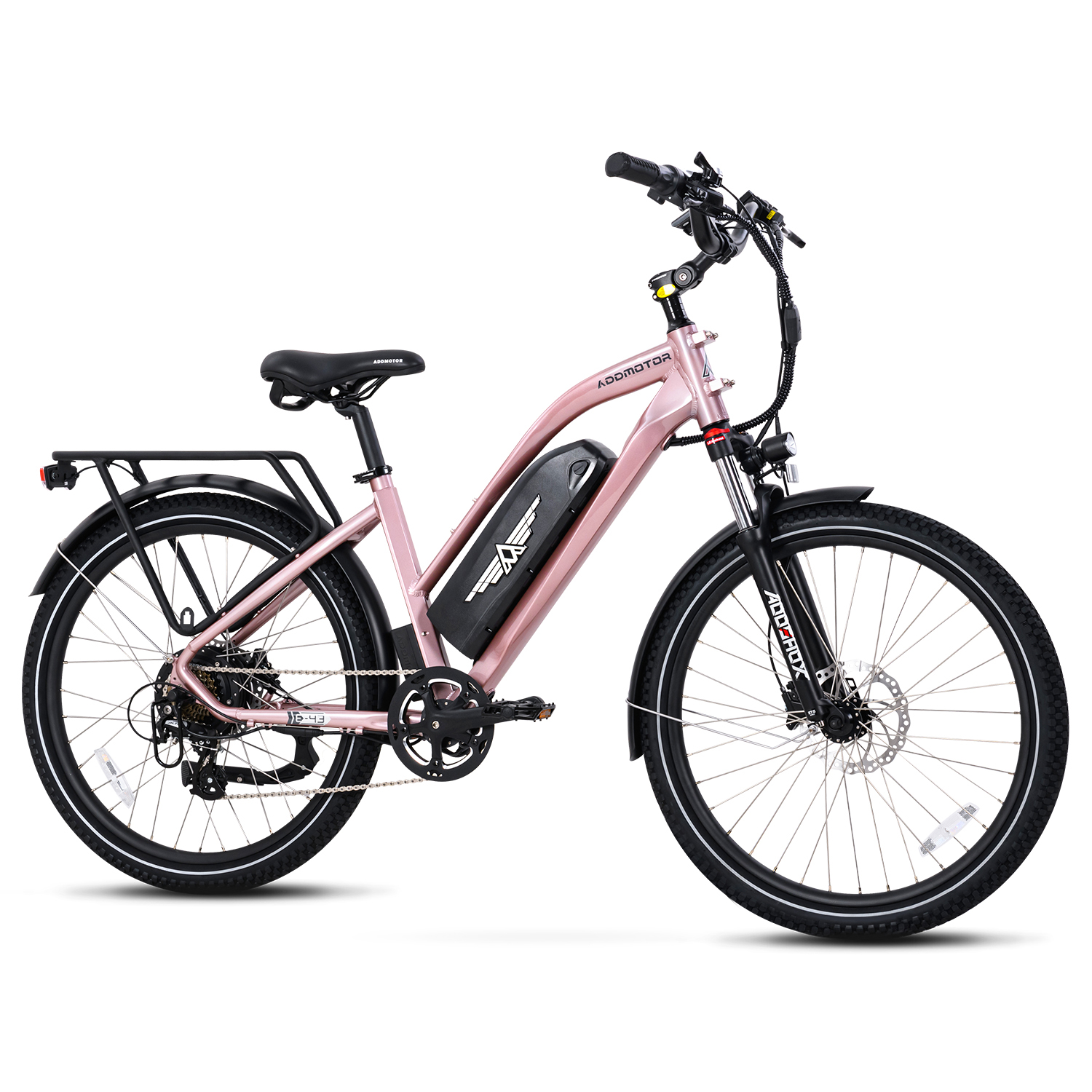

Addmotor employs new cutting-edge technology both internally and externally for its electric bikes and etrikes. Enjoy a long and comfortable ride with this E-Bike.
Addmotor controller simplifies various circuit systems and reduces the space on the board.

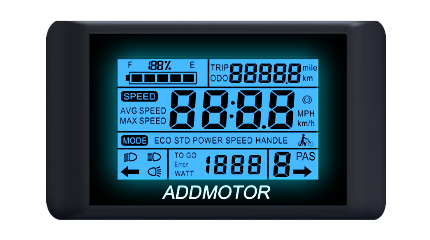

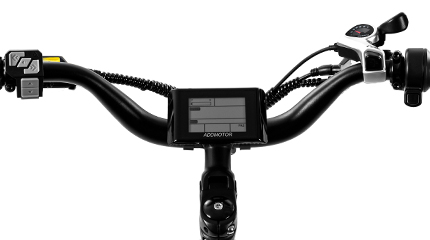

Including the left and right turning signals on the display screen gives an extra guarantee of your safety.

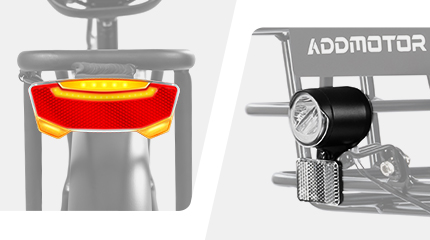

Provides additional lighting functions comparable to motorcycles and automobiles.

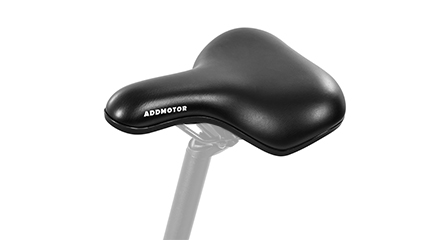

Improved comfortable saddle with a small handle makes it easier to lift and move.
The low-resistance design makes it easier to ride on a variety of terrains.

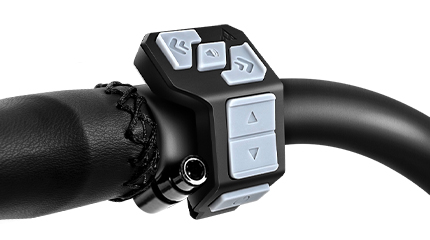

The uneven design allows you to distinguish each one with a single touch without watching it.
The adjustable stem allows you to adjust to the right angle for a comfortable upright position.

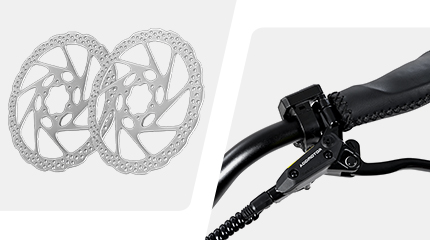

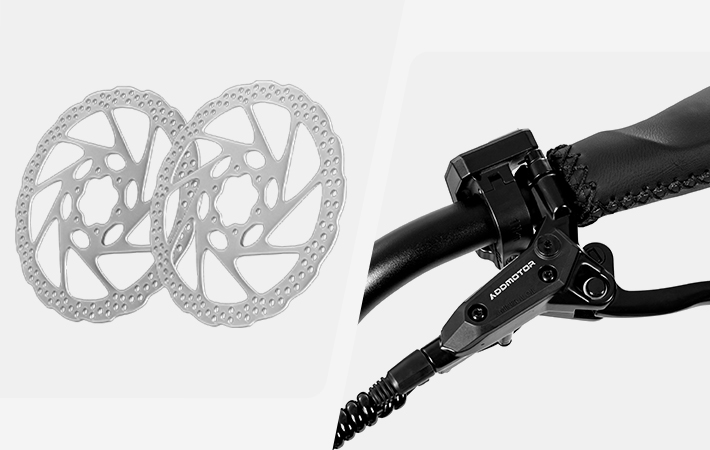

Strong, consistent braking performance, especially in wet or muddy conditions.

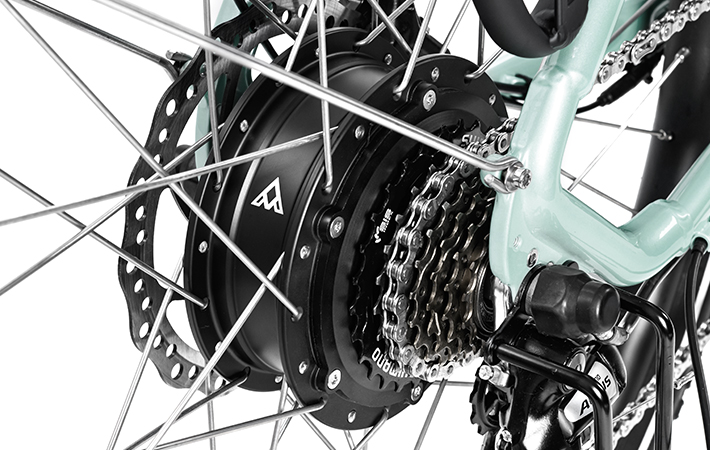

With the ability to ramp up to over 907 peak watts, this city e-bike can help you climb hills and accelerate with ease.

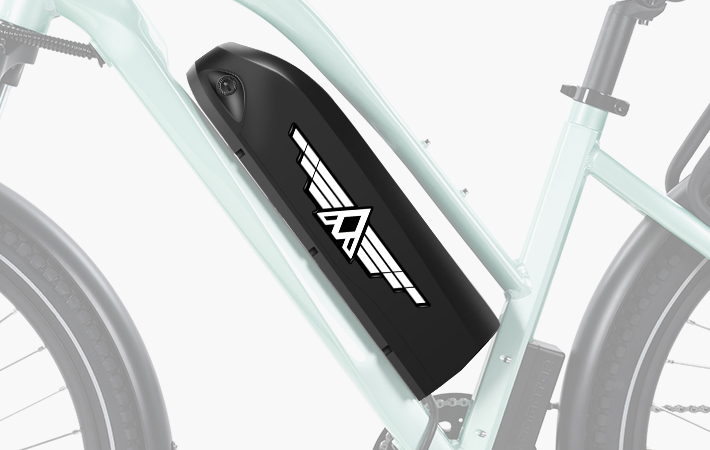

Not only does it have a larger cell capacity (reaching 5000mha), but it also has a higher max discharge current (reaching 3C) (Samsung 18650 2600mha is 2C).
The friction generated by the transmission of oily objects in the oil pipe will effectively reduce and the loss of kinetic energy increase the braking force.

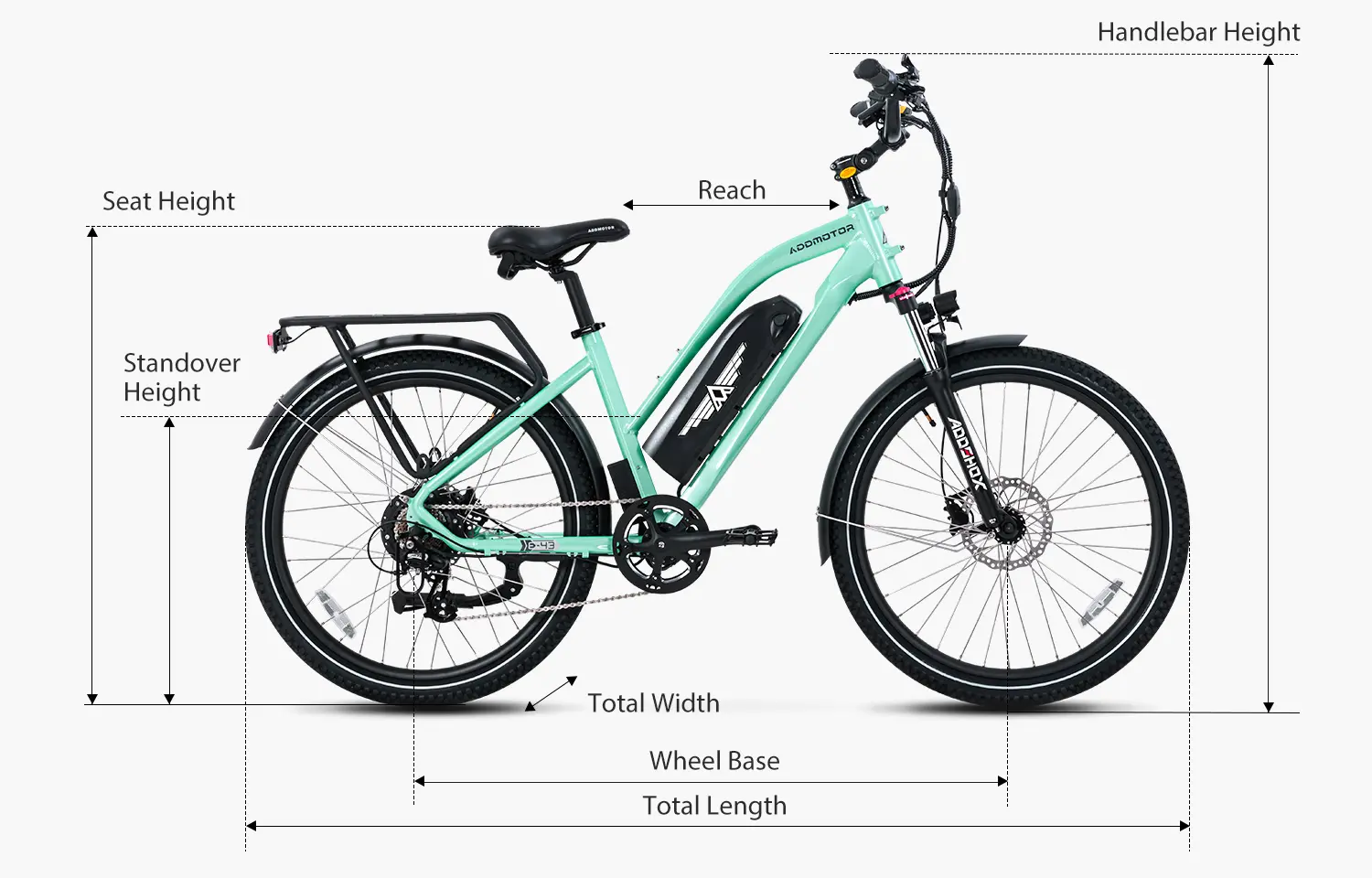

| Rider Height | 5'4"-5'11" |
|---|---|
| Reach | 7.8" |
| Total Length | 70" |
| Wheel Base | 44" |
| Total Width | 29" |
| Standover Height | 21.7" |
| Mini Saddle Height | 32.2" |
| Max Saddle Height | 40.5" |
| Handlebar Height | 40.5" |
| Charger | 48V*2.0AH 5 Pins US Standard DC Charger |
|---|---|
| Battery | 48V*20Ah UL-certified Battery |
| Speed | 20 Mph |
| Range | 125 Miles (PAS1) |
| Motor | 500W Rear Brushless Gear Motor |
| Weight | 64 LBS (Include Battery) |
| Payload | 250+50 LBS |
| Sensor | Speed Sensor |
|---|---|
| Brakes | TEKTRO Hydraulic Disc Brake |

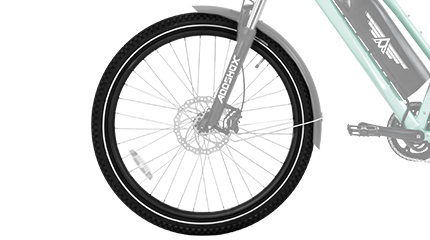

| Tires | Kenda GIGAS Puncture-resistant 26" X 2.3" Inches Durable Tires |
| Display | Addmotor 5-Inch LCD Display |
| Gearing | Shimano 7-Speed |
| Derailleur | SHIMANO 7 Speed Pedal Assist |
| Chain | KMC Stainless Chain |
| Front Fork | Oil Spring Fork with 100mm of Travel |
| Frame | 6061 Aluminum Alloy Polygon Frame |
| Throttle | Variable Speed Control - 1/2 Twist Throttle |
| Rims | Aluminum Double Wall |
| Saddle | Addmotor Exclusive Well Padded Saddle with Back Handle |
| Spokes | 12-Gauge High-Strength Spokes |
| Controller | Addmotor 25A Controller |
| Headlight | Supplies a brightness of 40 lumens, a visible distance of 200m, and a 180° side view. |
| Taillight | UL certificate, With driving light, left and right turn signals, danger light, flashlight, brake light |
